*way1 - export as XML Elements*
0-Open the XLS file contain the data you want to export
If you try to File > Save as > XML Data you will get a messagebox :
1-Excel2010 > Go to Files > Options > Customize Ribbon, check the 'Developer', on the second list.<br> Excel2007 > Files > Options > Popular > Show Developer tab in Ribbon.
2-On the 'Developer' tab, there is a XML section, click the 'Source' button. A right bar will open, click the 'XML Maps' button. From here you can define the columns for your XML. You can import an existing XML (to get the structure) or a XSD. When using XML MUST contains 2records, otherwise cannot handle it.
JavaScript:
//sample of xml to get the structure/fields
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<root xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
<row>
<fullname>Brendan Merritt</fullname>
<address>354 Lake View Drive Lake Mary</address>
<tel>(430) 286-6649</tel>
</row>
<row>
<fullname>Elisa Stokes</fullname>
<address>538 Greenrose Street Muskego</address>
<tel>(572) 343-7499</tel>
</row>
</root>3-Import this^ will appear the structure of xml
4-Create a new sheet, from the right xml bar, drag the #root# element to A1
5-Copy&Paste the rows from your sheet to the new sheet that contains the XML columns, paste at row 2 (I dont know why is blue ask microsoft!)
6-File > Save as > XML Data
*way 2 - using Microsoft AddIn to automate XML schema creation - export as XML Elements*
Guide -https://support.office.com/en-us/article/Create-an-XML-data-file-and-XML-schema-file-from-worksheet-data-e35400d4-0e10-4669-9a50-59a8c57d677e
or
http://franscribing.blogspot.gr/2013/05/how-to-convert-excel-2010-speadsheet-to.html
or
http://click-solutions.eu/IT-support/knowledgebase.php?article=1
1-Download the Excel 2003 XML Tools Add-in, and then follow the instructions.
2-Open Excel 2010, click on File > Options, select the Add-Ins category.
3-In the Manage box down at the bottom, click Go.
4-In the Add-Ins dialog box, click Browse, locate the XmlTools.xla file, select it and then click OK. By default, this file is stored in the following folder: C:\Office Samples\OfficeExcel2003XMLToolsAddin
5-Make sure the XmlTools check box is selected in the Add-Ins available list, and then click OK to load the add-in.
6-New Add-ins tab appear!
7-Open the XLS file contain the data you want to export, goto Add-ins tab > XML Tools > 'Convert a range to XML List'
8-click the 'Click here and drag select a range' > Select the range > Return back press enter to XML dialog > If the selection contains on first row the headers say to options
9-Click ok!
*way 3 - export as XML Attributes*
The way1 + way2, export with XML Elements, using the following XML Mapping
JavaScript:
//source - http://stackoverflow.com/a/14724334
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
[TR]
<item id="USER_NAME">
<en>Username</en>
<de>Username_D</de>
</item>
<item id="PASSWORD">
<en>Password</en>
<de>Password_D</de>
</item>
</translations>you can produce XML attributes!! tested&working.
*way 4 - using XSD (best way)*
the xsd template kept from bitwizards.com
JavaScript:
//original - https://bitwizards.com/Thought-Leadership/Blog/2010/November-2010/How-To-Export-an-Excel-2010-Worksheet-to-XML
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="NewsItemsTable">
<xs:complexType>
<xs:sequence>
<xs:element ref="NewsItemRow" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="NewsItemRow">
<xs:complexType>
<xs:sequence>
<xs:element name="newstitle" type="xs:string"/>
<xs:element name="newsdate" type="xs:dateTime"/>
<xs:element name="newssummary" type="xs:string"/>
<xs:element name="newstext" type="xs:string"/>
</xs:sequence>
</xs:complexType>
</xs:element>
</xs:schema>
JavaScript:
//modded
<?xml version="1.0" encoding="UTF-8"?>
<xs:schema xmlns:xs="http://www.w3.org/2001/XMLSchema">
<xs:element name="NewsItemsTable">
<xs:complexType>
<xs:sequence>
<xs:element ref="NewsItemRow" minOccurs="0" maxOccurs="unbounded"/>
</xs:sequence>
</xs:complexType>
</xs:element>
<xs:element name="NewsItemRow">
<xs:complexType>
<xs:attribute name="newstitle" type="xs:string"/>
<xs:attribute name="newsdate" type="xs:dateTime"/>
<xs:attribute name="newssummary" type="xs:string"/>
<xs:attribute name="newstext" type="xs:string"/>
</xs:complexType>
</xs:element>

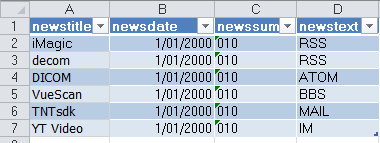

</xs:schema>then having this in Excel
File > Save as > XML Data, finally EXCEL exports to attributes!!
JavaScript:
//here it is!
<?xml version="1.0" encoding="UTF-8" standalone="yes"?>
<NewsItemsTable>
<NewsItemRow newstitle="iMagic" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="RSS"/>
<NewsItemRow newstitle="decom" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="RSS"/>
<NewsItemRow newstitle="DICOM" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="ATOM"/>
<NewsItemRow newstitle="VueScan" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="BBS"/>
<NewsItemRow newstitle="TNTsdk" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="MAIL"/>
<NewsItemRow newstitle="YT Video" newsdate="2000-01-01T00:00:00.000" newssummary="010" newstext="IM"/>
</NewsItemsTable>*way 5 - misc*
convert elements to attributes via XLT
http://stackoverflow.com/a/6800505
http://www.shell-tools.net/index.php?op=xslt
XLS to XML Translate files between XLS / XLSX and XML format - http://xlstoxml.sourceforge.net/
Convert Excel Spreadsheet data to XML - www.youtube.com/watch?v=9bat12gH3Qs
Excel file to an XML data file, or vice versa - http://www.excel-easy.com/examples/xml.html
Exporting a Google Spreadsheet as JSON - http://blog.pamelafox.org/2013/06/exporting-google-spreadsheet-as-json.html or https://gist.github.com/pamelafox/1878143
software created - XML Elements to Attributes
#xml #attributes #elements #excel #sheet
